Q8 | World-Realistic Color, mm - Level Precision

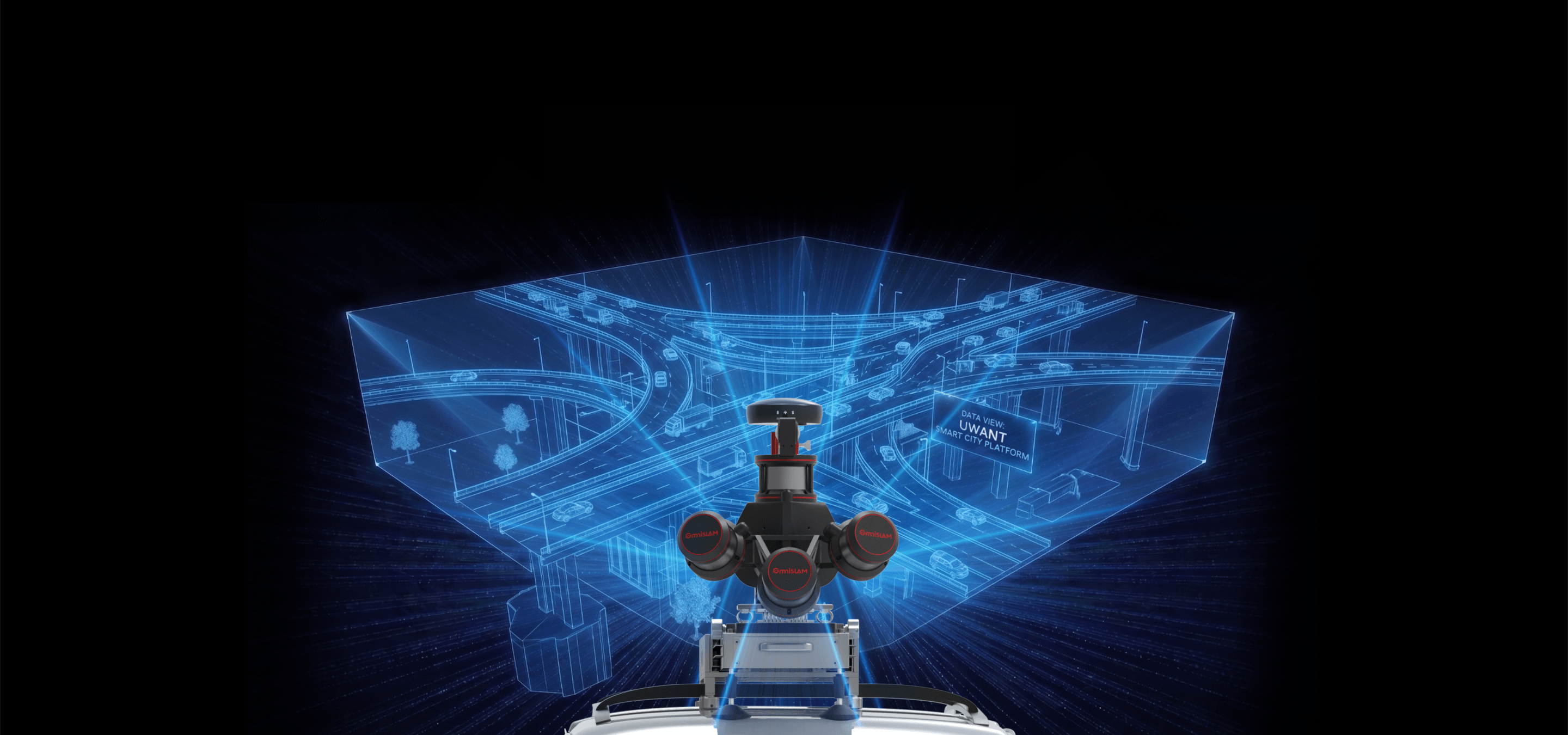

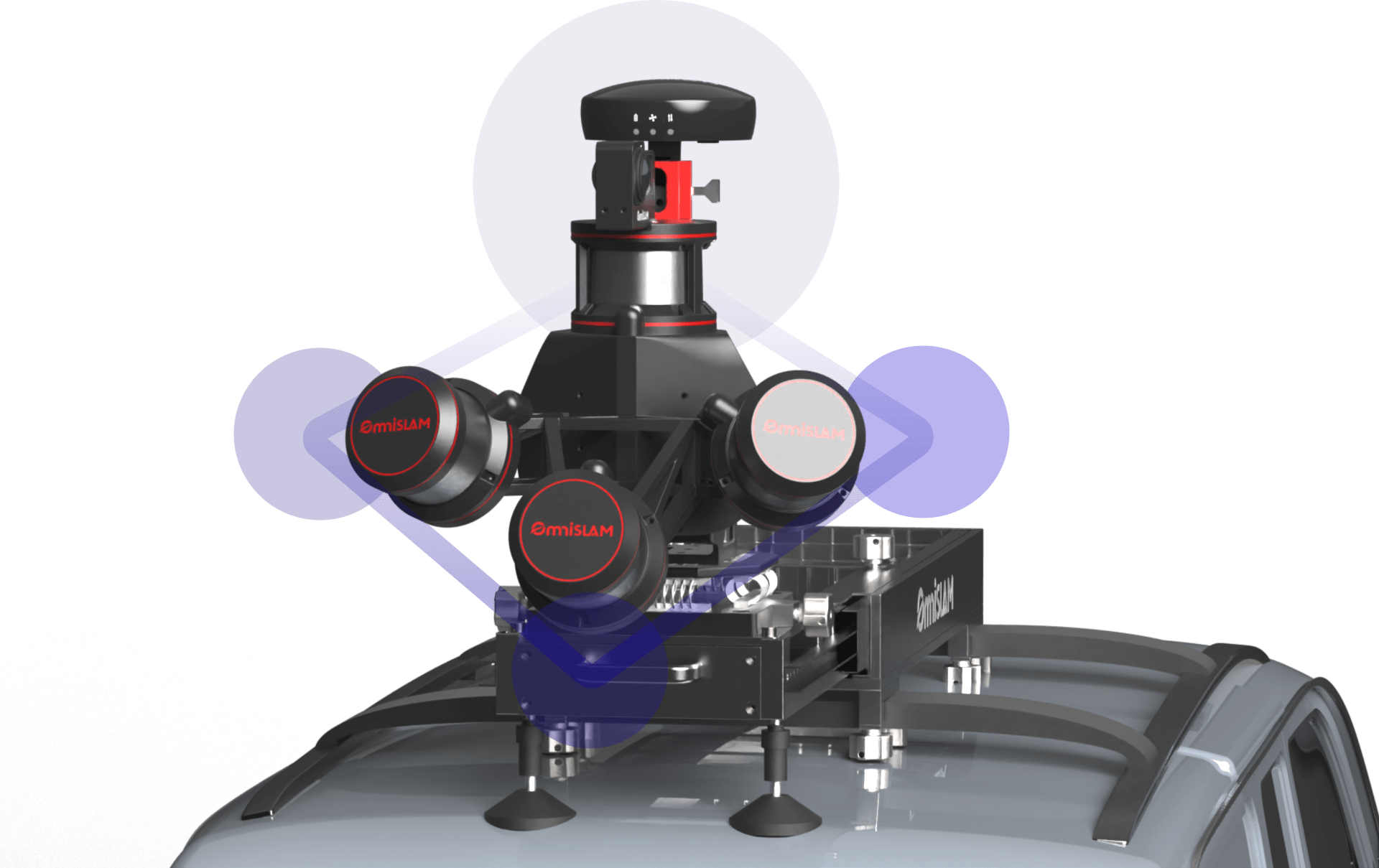

"Diamond-Array"
Quad-LiDAR Architecture
A breakthrough in both aesthetics and performance. The
innovative diamond-array quad-LiDAR architecture
delivers the optimal optical path solution, significantly
improving point cloud density and overlap rate to ensure
high-quality data capture during mobile scanning.
Fixed Quad LiDAR
32×4=128 Channels
No Blind Spots. Every Angle Covered.
Unique Pure
SLAM Technology
Not an evolution of traditional GNSS/INS navigation, but a fundamental architectural breakthrough. It delivers high-precision positioning and mapping even in highly dynamic traffic environments.

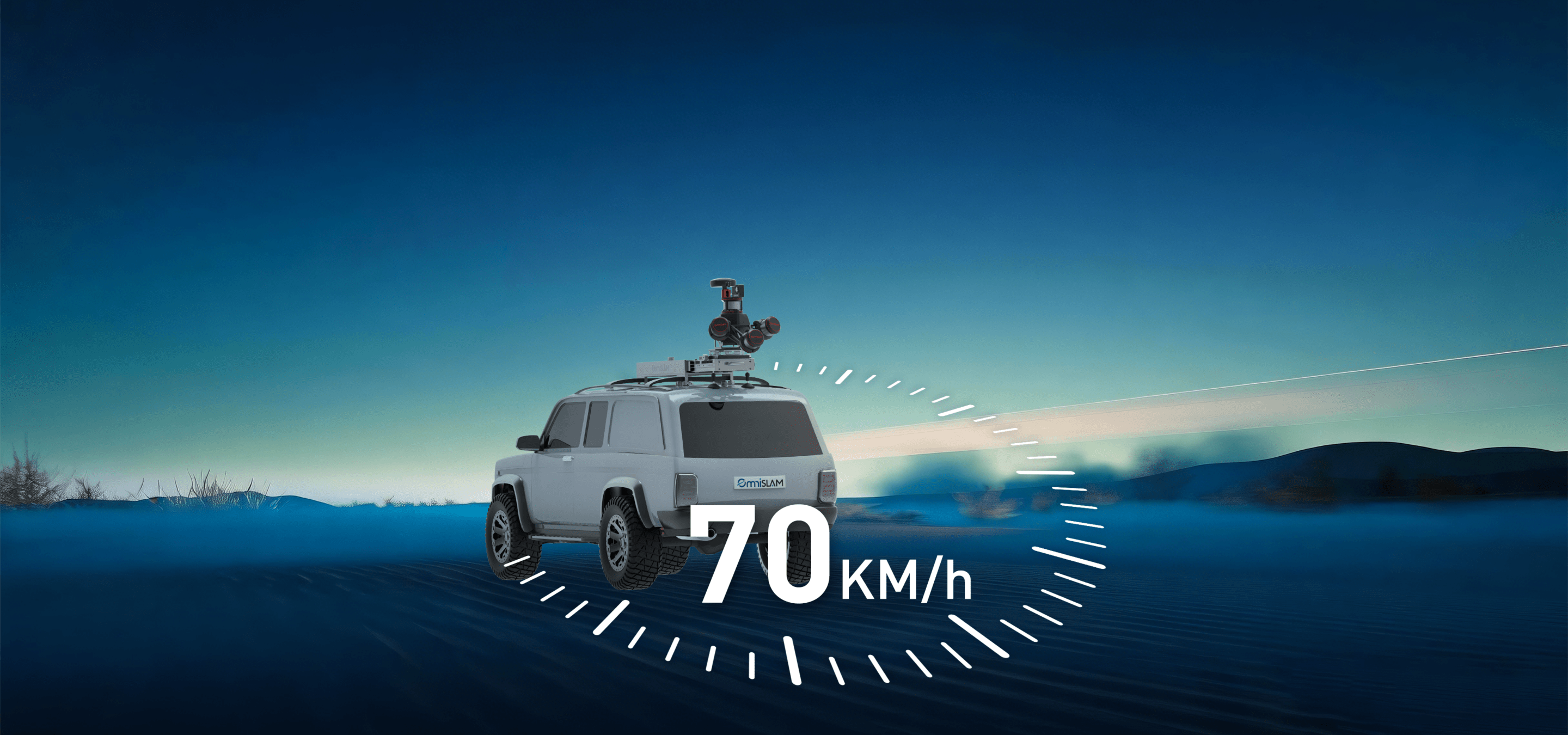

High-Speed Scanning, Efficiency Revolution
Q8 enables high-speed scanning at up to 70 km/h, delivering high-quality and highly complete 3D point cloud data with unprecedented efficiency.
Where Efficiency Meets
Point Cloud Quality
Powered by its diamond-array architecture, Q8 delivers a stable, multi-overlapping scanning pattern that improves point cloud density at mid-to-long ranges. Even at high speed, it produces denser and more uniform data than T8, enabling more accurate traffic sign recognition and crack measurement.
2 mm Ultra-thin Point Cloud
Always Consistent
From static scanning to 70 km/h mobile mapping, and from confined tunnels to open highways, the Q8 consistently delivers an ultra-thin 2 mm point cloud thickness, ensuring reliable data quality for deformation monitoring, distress detection, and other high-precision applications.

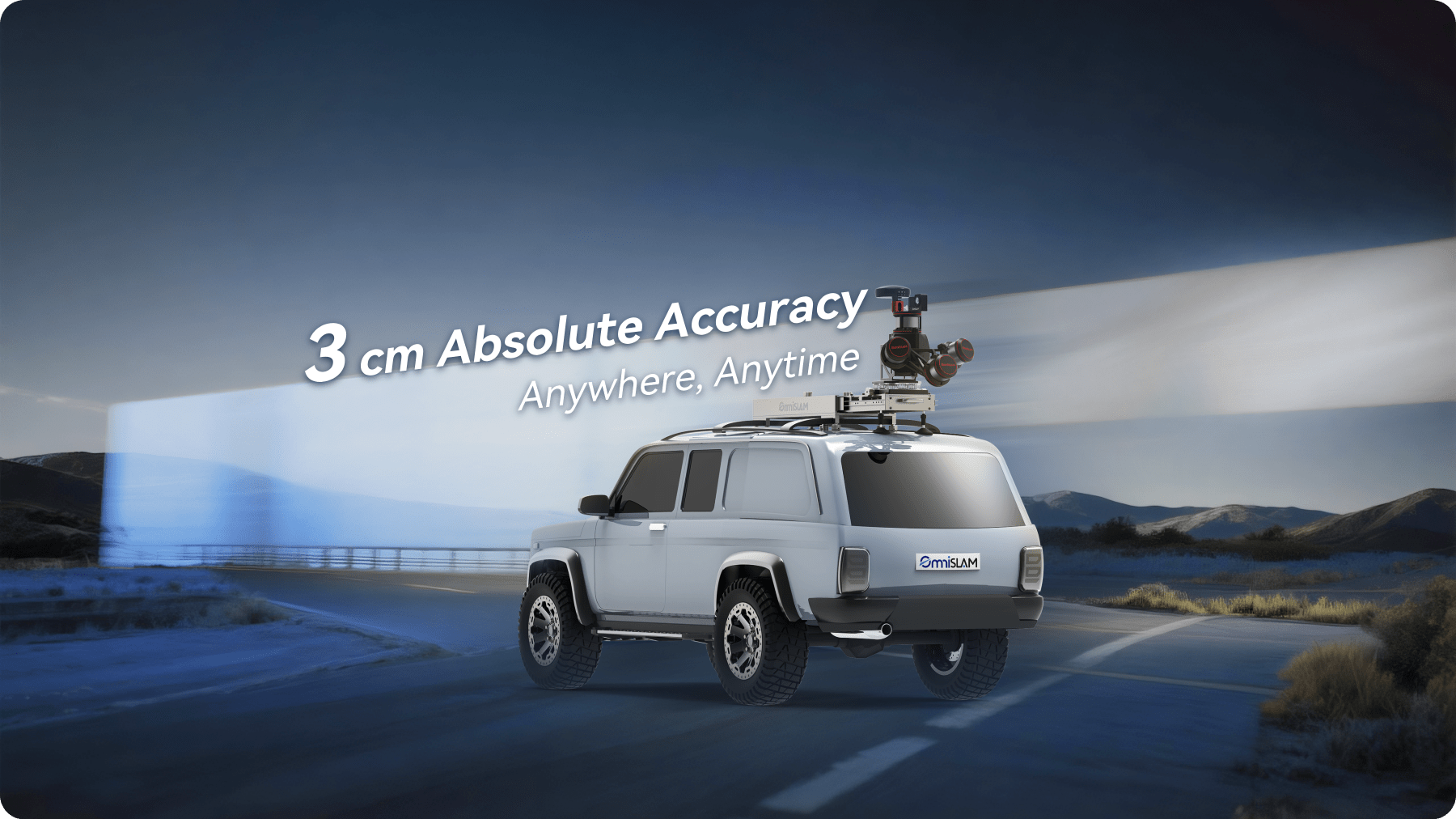

3 cm Absolute Accuracy
The Q8 maintains absolute accuracy within 3 cm even during high-speed operation, eliminating positioning loss and drift in GNSS-denied environments and ensuring stable, high-precision spatial data acquisition anytime and anywhere.
